Product Description
Description

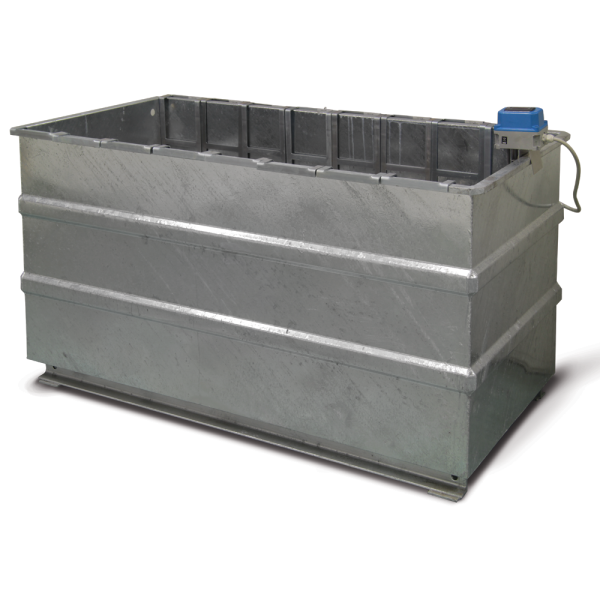

Zinc plated steel model 55-C0191
Specimen curing tank, 1000 l cap. galvanized steel, complete with metal base specimen supporting grid.
It can be fit with various accessories including:
- immersion analogic and digital heating systems (55-C0191/10, 55-C0191/11)
- submersible circulator pump to maintain uniform the water temperature (55-C0191/5)
- metal cover (55-0191/12)

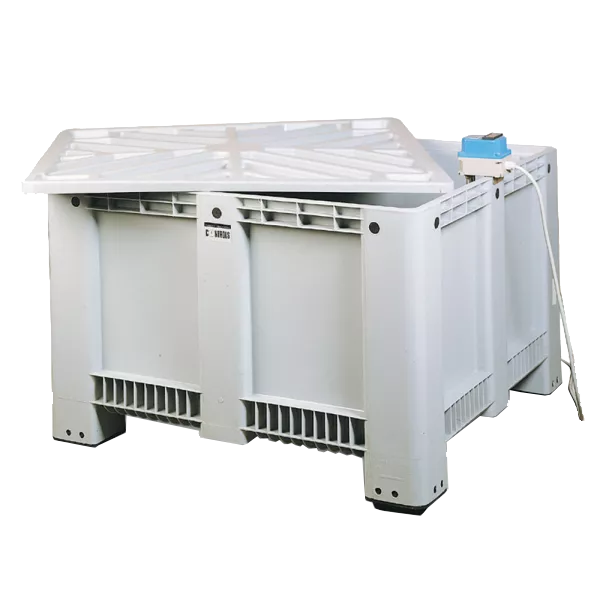

Heavy plastic model 55-C0193/A and 55-C0193/R
Ideal for site laboratory, supplied complete with robust metal internal base to hold concrete specimens without distortions.
They can be fit with various accessories including:
- immersion analogic and digital heating systems (55-C0193/5, 55-C0193/5R, 55-C0193/6, 55-C0193/6R
- submersible circulator pump to maintain uniform the water temperature (55-C0191/5)
- plastic cover (55-0193/A1, 55-C0193/R1)
Specifications
| Model 55- | C0191 | C0193/A | C0193/R |
| Inside dim. mm | 1500x750x780 | 1040x1040x605 | 1100x710x690 |
| Outside dim. mm | 1550x805x820 | 1130x1130x760 | 1200x800x850 |
| Capacity l | 1000 | 650 | 550 |
| Specimen capacity* (150 mm cubes) |
64 (with racks) | 36 | 24 |
| Weight kg approx. | 110 | 30 | 30 |
| Accessories for: | |||
| Immersion analogue heater |
55-C0191/10 | 55-C0193/5 | 55-C0193/5R |
| Immersion digital heater |
55-C0191/11 | 55-C0193/6 | 55-C0193/6R |
| Cover | 55-C0191/12 | 55-C0193/A1 | 55-C0193/R1 |
| Submersible circulator Pump |
55-C0191/5 | ||
*Conventionally we have specified 150 mm cube specimens but, any other type or dimensions are accepted within the limit of the tank dimension.
Ordering Information
55-C0193/A
Heavy plastic curing tank 650 l cap. with metal base
55-C0193/R
Heavy plastic curing tank, 550 litres. Complete with metal base and drain cock.
55-C0191
Specimen curing tank, 1000 l cap. galvanized steel, complete with metal base specimen supporting grid.
Accessories
Immersion Heaters (analog)
55-C0191/10
Thermostatic analogic submersible heating system for curing tank 55-C0191. 1500 W. 230V/50-60HZ/1ph
55-C0193/5
Thermostat analogic heating system 1500W 230V/50-60Hz/1Ph.
55-C0193/5R
Thermostat analogic heating system for curing tanks mod. 55-C0193/R. 230V/50-60Hz/1ph

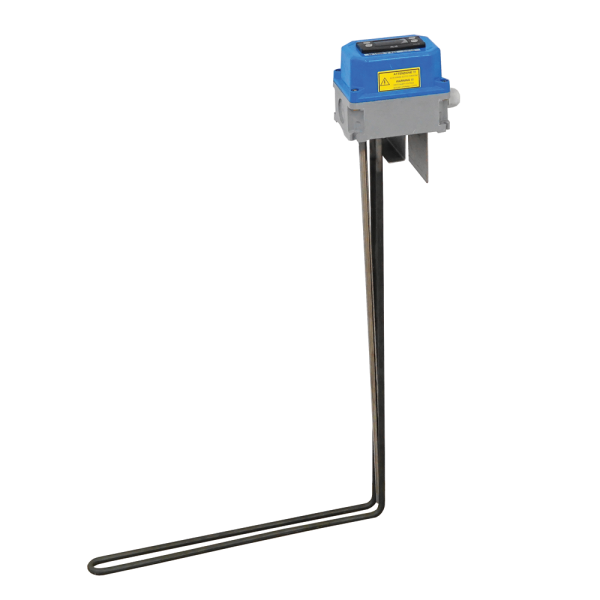

Immersion Heaters (digital)
55-C0191/11
Thermostatic digital submersible heating system for curing tank 55-C0191. 1500 W. 230V/50-60HZ/1ph
55-C0193/6R
Thermostat heating system with digital display/ thermoregulator for curing tanks model 55-C0193/R 230V/50-60Hz/1ph
55-C0193/6
Thermostat heating system with digital thermoregulator/display for curing tanks. 230V/50-60Hz/1Ph
Other Accessories
55-C0191/12
Metal cover for curing tank 55-C0191
55-C0191/3
Upper rack
55-C0193/A1
Plastic cover for 55-C193/A
55-C0193/R1
Plastic cover for 55-C0193/R
55-C0191/5
Submersible circulation pump for tanks. 230V/50-60Hz/1Ph.
