Product Description
Description
Distance pieces are available in three different series:
Standard series 50-C908x
For concrete compression machines/frames when testing normal strength concrete (NSC).

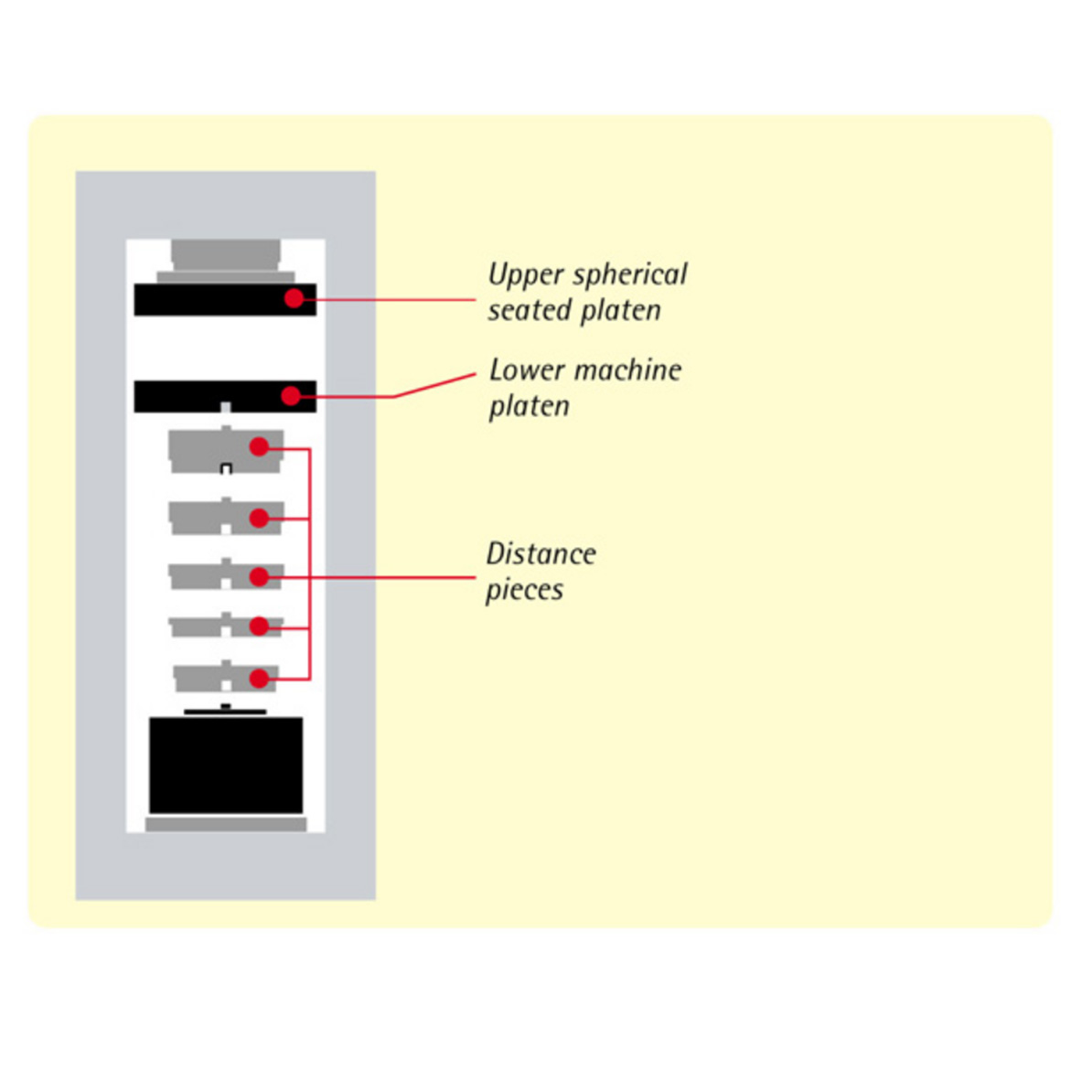

These distance pieces are fitted with a centering central pin for stacking up. They are simply laid on the piston while the bottom compression platen of the compression machine/frame is placed on top of the distance pieces.
Series 50-C9080/xx
For concrete compression machines/frames when testing high performance concrete (HPC), rocks, clay blocks and in general materials having brittle failure.
These distance pieces are fitted with a centering central pin for stacking up. They are simply laid on the piston or fixed by 2 screws while the bottom compression platen of the compression machine/frame is placed on top of the distance pieces or fixed by 2 steel plates model 50-C9080/F (see Accessories).

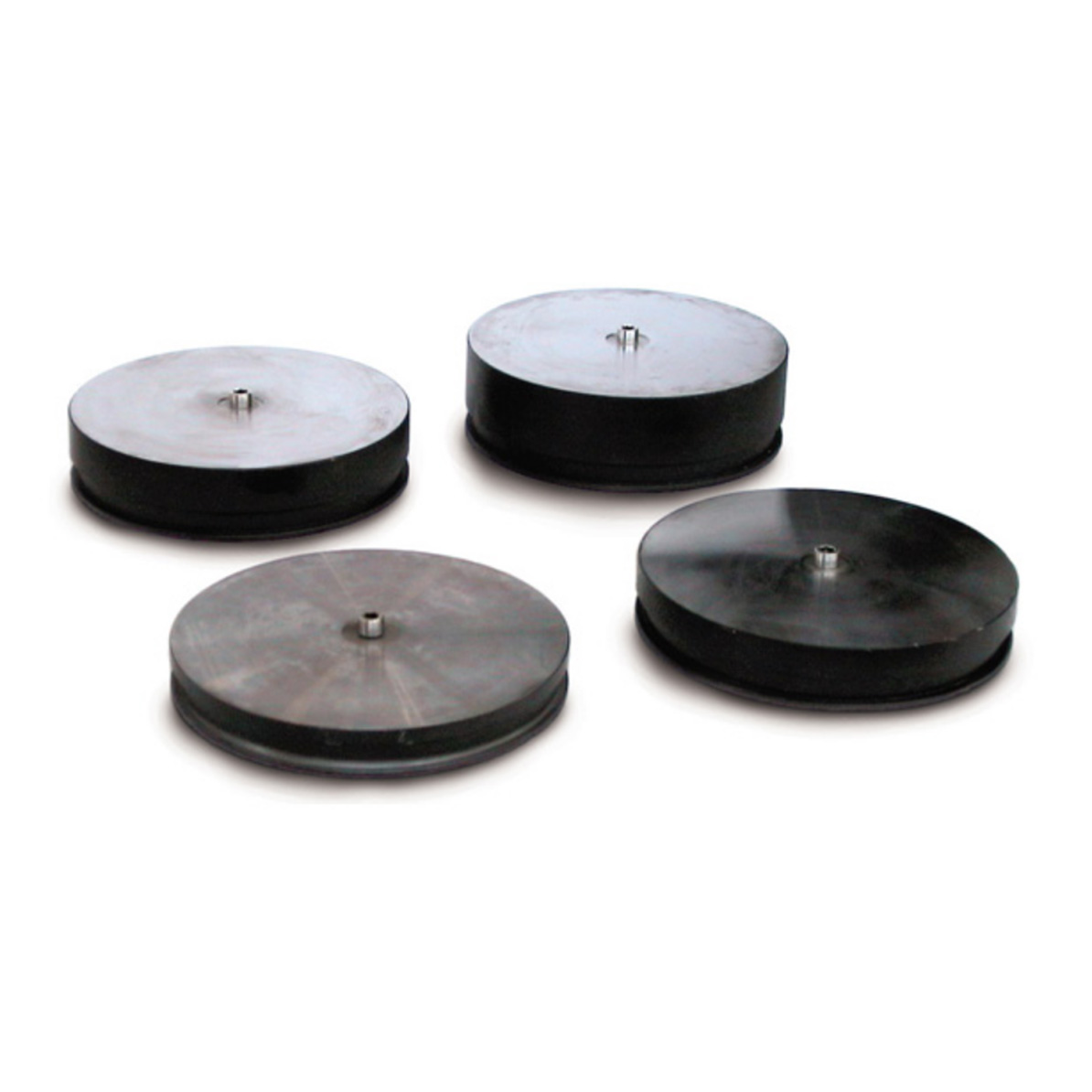

Distance pieces for concrete compression testers:
| 50-C9080 | Distance Piece, dia 200 x 30mm |
| 50-C9082 | Distance Piece, dia 200 x 50mm |
| 50-C9083 | Distance Piece, dia 200 x 68mm |
| 50-C9086 | Distance Piece, Dia 200 x 100mm |

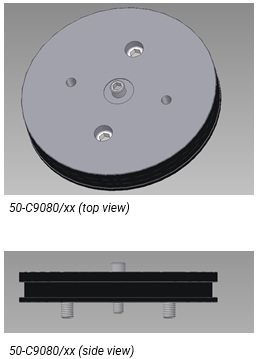

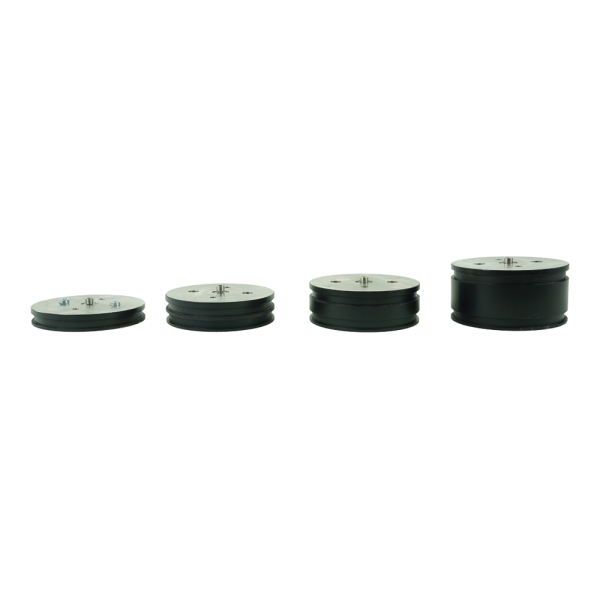

Distance Pieces complete with both central centring pin for simple stacking up and two screws for solid fixing:
| 50-C9080/30 | Distance piece dia.200x30mm with two screws for solid fixing |
| 50-C9080/50 | Distance piece dia.200x50mm with two screws for solid fixing |
| 50-C9080/68 | Distance piece dia.200x68mm with two screws for solid fixing |
| 50-C9080/100 | Distance piece dia.200x100mm with two screws for solid fixing |

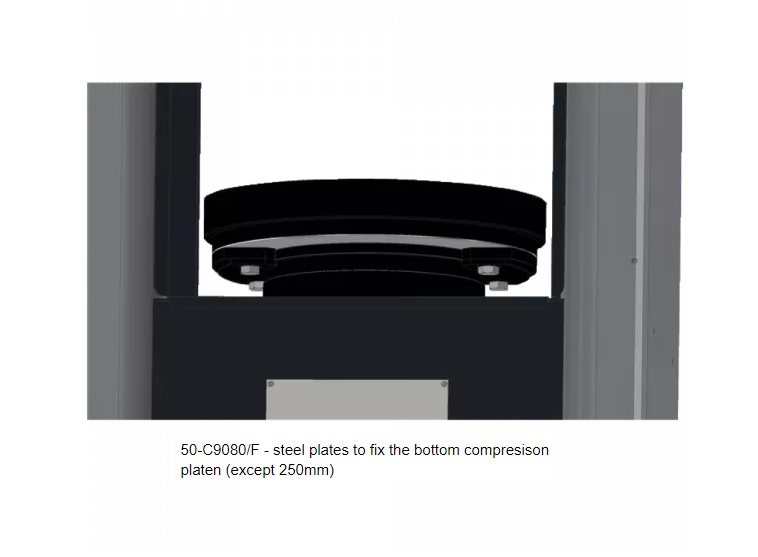

| 50-C9080/F | Steel Plates, to fix the bottom compression platen (except dia. 220/250mm) to the distance pieces model C9080/xx |
| 50-C9080/H | T” Handle for distance pieces lifting |
